Project 3: Final Model-Components

all models are made in scale 1:100

General view of the proposed house

General view of the proposed house-close up

The entrance-as the public approaches up to gallery, the view of city follows their footstep. They pause at the top and soon turn left into gallery.

Private roof garden from house 1 apartment-relationship with house 2. The garden is elevated and open, yet separated from public access.

Proposed house 2 apartment. The open curtain glass wall allows resident to view the city scape wide open, but yet again separated from the public access.

Project 3: Final Model-Back

all models are made in scale 1:100

view from the back bottom of the cliff-birds eye view

view from the back bottom of the cliff-on road view

Project 3: Final Model-Front

all models are made in scale 1:100

Front Elevation View-away (view from victoria street)

Front Elevation View-close up (view from victoria street)

Front Elevation View-approaching from city (view from victoria street)

Front Elevation View-approaching from Kings Cross (view from victoria street)

Front Elevation View-view from above (view from victoria street)

Project 3: Final Drawing-Presentation Layout

For Large image view please go to the following site:

http://www.flickr.com/photos/49123125@N07/sets/72157626961214146/

Project 3: FInal Drawing-Diagrams

Project 3: Final Drawing-Plans & Sections

Project 3 Final Drawing-Site Plan & Scheme

Project 3 Final Drawing-Mapping

Project 2 Final Drawing

The presentation explains Villa Savoye in layers starting from:

1. surrounding,

2. facade,

3. program,

4. structure,

5.circulation

The season analysis explains the surrounding of Villa Savoye. These are the views you see looking out from the interior of villa. As the season changes, you are still surrounded by nature and the view are the same (except for the season colours).

From the free facade, one cannot identify the complication behind the scene. The free facades help to reinforced the idea of an "object-like machine" design. However, as the layers progress to the next stage, you can see the complication of programming behind those free facades. The colours are used to represent different zone of the interior. (Red=public, blue=private, green=garden) Those colours are used accordance to the season change. (winter=blue=more private area, red=autumn=more public interior spaces, green=spring=outdoor gardens)

Device analysis:

Discussed in Model section.

The drawings once again reinforce the progress of constructing Villa Savoye from structure, to circulation, programming and geometry analysis. All drawings are drawn according to the structure grid.

Project 2 Final Model

The architectural propositions of Villa Savoye in abstract 3D form

(all models are made in scale 1:100)

The design scheme is divided into three categories:

1. structure

2. circulation

3. programming

Villa Savoye is analysed in layers which it was constructed followed by important elements starting with structure, then circulations (ramp and stair case) and the program (public VS public) in relation to the structures and circulation.

The materials used in the model making represent different elements and present in an abstract form to illustrate the idea.

1. Structure

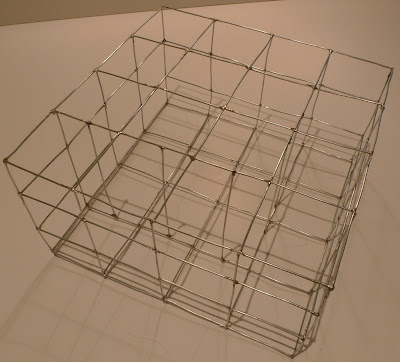

The structure of Villa Savoye is constructed in a box-like to convey the idea of "machine of living" and viewing the building as an "object". The avant garde use of concrete columns are representing in the soldered metal box. The metal wires are lined with the structure grid of Villa Savoye the vertical metal sticks are added on in position of the columns of the plan and in the position of the intersection of metal grid.

The structure is the basic scheme of constructing Villa Savoye. Elements such as circulation, programming, view etc are "placed in" accordance to the structure.

2. Circulation

The circulation of the house: the ramp and the spiral staircase.

These two elements are the key circulation of the house. It allows people to move through spaces smoothly and experience the space in different motions and time. Both the ramp and the staircase are placed accordance to the structure columns of the villa, especially with the ramp being placed in the middle of the house as the major circulation and reinforced the idea of "moving through machine". The perspex helps to distinguish the layers and floors of the house. Moreover, the transparency allows viewers to identify and recognise how the ramp (made with foam core to present the material of concrete) moves through those layers.

3. Programming

The program of the Villa Savoye is simple to understand. Le Corbusier had separated public and private in two different zones as seen in the model. (Black=public, white=private). Through the mode, you can understand how Le Corbusier easily program the house according to the structure. Due to the column structure and the "box-like" machine design, spaces and rooms can be placed anywhere and freely. The model illustrates the idea of "free plan" which Le Corbusier had suggested in his "new architecture" theory. The red wire is used to demonstrate how circulation can moved throughout the house.
